S-1633 Series

Versatility and Material Adaptability:
Powering Your Solutions
Share:

S-1633 Series

Versatile & All-Purpose


Accommodate Varied
Cardboard Cases

Production speed up to
180 pcs/minute  10,500 pcs/hour






APPLICATIONS


Operating System

  • Production Management Software
  • Remote Management System
  • Ordering Set-up Function
  • Intelligent Graphical User Interface
  • Real-Time Information Dashboard
  • Optimized Quality Management
  • Downtime Information Processing
  • Customized Functional Reports
  • Computer Interface Control System

    Centralized control system, ensuring synchronized operation and status updates for each unit.
  • Intelligent Graphical User Interface

    Operator can efficiently access information and navigate seamlessly, with the flexibility to switch between various box-type production modules.

  • Ordering Set-Up Function

    Adopting simple graphical user interface, the system automatically interprets the relevant functional parameters of each unit, eliminating the necessity for manual repetitive adjustments.


Feeder Unit

  • Sun Automation feeding system, capable of adapting to various conditions of corrugated sheet.
  • Sunrise's vacuum system enhances the flexibility tolerance of corrugated sheets, minimizing feeding challenges resulting from variations in inconsistent cardboard quality, such as titling or shifting issues.
  • Suitable for cardboard sheets with a thickness range of 1.5~9mm (AB-E flute), it accommodates to a variety of production requirements, including different thicknesses of cardboard sheets feeding.

  • Connect to the computer system for preconfiguring corrugated sheet types and dimensions, allowing for automatic adjustments in sheet feeding distance, gap between feed rolls and stopper positions.

  • Maximize stroke extensions automatically adjusted feeding mechanism to minimize damage to the cardboard sheets.

  • 工-Beam Steel Structure

    Minimize operational vibrations.

    Ensure stability throughout the feeding process.

    Improve the precision of the feeding mechanism.

  • Lead Edge Feeding with Adjustable Vacuum System

    Sun Automation lead edge feeding system, in conjunction with Sunrise's designed vacuum system, enhances adaptability to varying qualities of cardboard sheets.

  • Detachable Feeder Cylinder

    Detachable feeder cylinder, streamlineling the replacement and maintenance process.


Printer Unit

  • The “RETURN” function with automatic restoration for precise print positioning, enhances machine efficiency and significantly reduces waste production.

  • The vacuum transfer device minimizes displacement of print dots, allowing for adjustable gaps between the cardboard sheet and printing plate to achieve the state of “kiss-touch.” This ensures high print quality for both print dots and full-page printing.
  • Doctor blade chamber inking device delivers a consistent ink volume during both high and low-speed rotations, guaranteeing clarity in print dots, fine text and even full-page printing.
  • Doctor blade chamber inking device offers easy maintenance, minimal ink consumption, short cleaning time and high system stability.

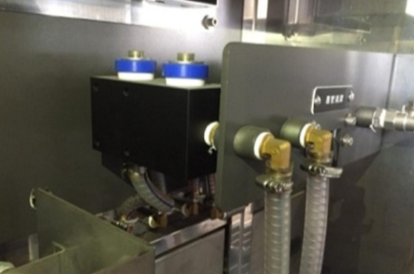

  • Pneumatically controlled anilox ink transferring timming
  • Automatic printing plate locking device
  • Automatic ink shortage detection system
  • Options for printing: Top、Bottom、Both (Top & Bottom) Print
  • Doctor Blade Chamber Ink Distributing System (Optional)

    A doctor blade chamber inking system ensures stable print quality and ink consistency in high and low-speed operations. The optional quick-change blade system allows replacement in under one minute.
  • Automatic Ink Shortage Detection System

    To protect the anilox roll from damage caused by insufficient ink, the system will activate an alarm notification upon detecting an ink shortage.
  • One Press "RETURN" Feature

    Following a required pause or shutdown, simply press “RETURN” to resume production without the need for additional adjustments.




Slotter Unit

  • The dual-shaft slotting mechanism with independent knife shafts enables unrestricted box height, prevents collisions, and simplifies slotting depth adjustment without the need for the tool dissassembly, effectively saving operational time.
  • The linkage plate, in collaboration with linear guides and a ball screw, enhances the efficiency and precision of controlling the slotting and creasing operations for corrugated sheets.
  • The slotting knife's fixed feeding gap eliminates adjustments for cardboard thickness, enhancing operational efficiency.
  • Upon entering cardboard box dimensions needed, the machine automatically interprets slotting knife movement positions, simplifying operations and meeting production requirements.
  • The cut-off edge-trimming knife prevents the accumulation of scraps and dust, ensuring precise slotting accuracy.
  • Double-Shaft Slotting Mechanism

    The dual-shaft slotting mechanism with independent knife shafts enables unrestricted box height, prevents collisions, and simplifies slotting depth adjustment without the need for the tool dissassembly, effectively saving operational time.

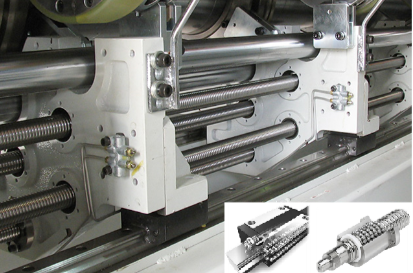

  • Lateral Movement Mechanism of Slotting Knives and Creasing Wheels

    The moveable plate, in collaboration with linear guides and a ball screw, enhances the efficiency and precision of controlling the slotting and creasing operations for corrugated sheets.

  • Glue Tab Cutting Device

    The glue tab cutter holder is equipped with a cushion mechanism, extending the lifespan of the cutter and reducing the need for adjustments.


Die-Cutter Unit

  • A 9-stage speed compensation system ensures precise synchronization of linear speeds between the anvil and the die-cutting cylinder.
  • The quick-lock functionality of the die-cut mold (optional) enhances efficiency and decreases the time required for mold replacement.
  • The electric anvil oscillation device evenly distributes the wear on the anvil surface, thereby extending the lifespan of the anvil roll.
  • Electric Anvil Oscillation Device

    The electric anvil oscillation device evenly distributes the wear on the anvil surface, thereby extending the lifespan of the anvil roll.
  • Anvil Grinding System

    Restore the surface of the anvil roll to a smooth and good condition, improving operational stability.
  • Quick-lock Die-Cut Mold Device (Optional)

    The quick-lock feature of the die-cutting mold eliminates the necessity for screw tightening, enhancing efficiency, and reducing downtime during mold replacement.




LAYOUT

*The layout diagram linked above primarily utilizes the CTK counting stacker device.

When used in conjunction with other devices, variations in dimensions and specification may occur.

This model can be combined with other Stacking Device

SPECIFICATION
Unit:mm

Models

F Fixed / S Open Closed

F-618 Series

(27.5")

F/S-925 Series

(37.5")

S-1227 Series

(50")

S-1628 Series

 (66")

S-1633 Series

(66")

F-1227 High Productivity

(50")

Production Speed

(minute / hour)

350 / 21,000 320 / 19,200

250 / 15,000

150 / 9,000 150 / 9,000 300 / 18,000

Max. Cardboard Size

(Continuous Feed)

600 x 1800 860 x 2500

1150 x 2700

1520 x 2800 1520 x 3300 1100 x 2700

Max. Cardboard Size

(Skip Feed)

N/A 1200 x 2500

1600 x 2700

2000 x 2800 2000 x 2800 1250 x 2700
Min. Cardobard Size 200 x 455 270 x 750

340 x 750

450 x 750 450 x 750 340 x 750
Max. Print Area 600 x 1700 870 x 2400

1170 x 2600

1560 x 2700 1560 x 3200 1170 x 2600
Repeat Print Area 700 953

1272

1676 1676 1272
Cardboard Thihckness 1.5 ~ 9 1.5 ~ 9

1.5 ~ 9

1.5 ~ 9 1.5 ~ 9 1.5 ~ 9
Max. Width of Glue Tab 45 45

45

45 45 45
Max. Die-Cutting Area 600 x 1400 900 x 2300

1200 x 2600

1600 x 2700 1600 x 3200 1200 x 260

TV Top Print

BV Bottom Print

TV TV

TV / BV

BV TV / BV TV
